EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT PARTS

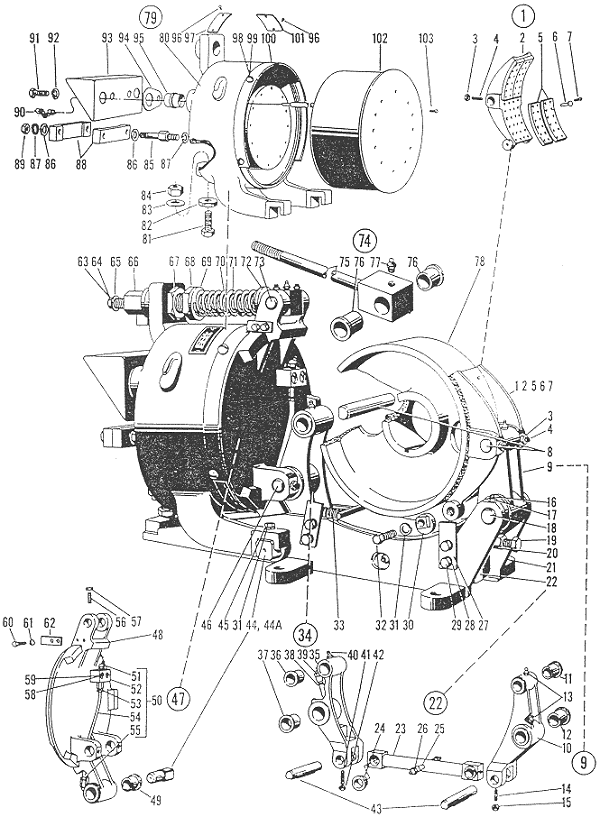

CLASS 5010 23" TYPE WB BRAKE, FOLIO 5



  ITEM     OEM PART     DESCRIPTION
1
2
5
6
8
9
10
11
12
13
18
19
20
21
22
23
24
26
27
30
33
34
35
36
37
39
40
43
44
44(a)
44(b)
44A
46
47
48
49
50
51
52
53
54
55
62
65
66
67
68
69
70
71
72
73
74
75
76
77
79
80
81
82
83
84
85
88
93
94
100
W-23004-A
W-23005
W-23043
W-659
W-23032
W-23006-A
W-23008-A
FP-24J11
FP-24J12
FP-25A12
W-23033
W-23027
W-23042
W-23018-A
W-23009-A
W-23095-A
FP-24J11
FP-25A15
W-23025
W-19015-A
W-23021
W-23007-A
W-23008-A
FP-24J11
FP-25J12
FP-25Al2
FP-25A15
W-23031
-
W-23232
W-23233
W-23028A
W-23034
W-23002-A
W-23003-A
FP-24J12
W-23047-A
W-13026
FP-25A16
FP-25A17
W-23048
FP-25A18
W-19049
SS-292
W-19022
W-19041
W-23023
W-23045
W-23020
W-23082
W-23078
W-23035
W-23012-A
W-23094-A
FP-24J10
FP-25A12
W-23001-A
W-23087-A
W-23040
W-23088
W-23092
W-23080
W-19090
W-19091
W-23089
W-23039
W-23024
  Assembled Brake Shoe, Complete
  Brake Shoe, Only
  Brake Block
  Rivet
  Shoe Pin
  Assembled Shoe Lever, Complete
  Shoe Lever
  Bearing
  Bearing
  Grease Fitting
  Shoe Lever Pin (Frame End)
  Equalizing Screw
  Lock Nut
  Assembled Frame
  Assembled Connecting Rod Comp
  Connecting Rod
  Bearing
  Grease Fitting
  Cam Rail
  Cam
  Centering Spring
  Assembled Shoe Lever, Complete
  Shoe Lever
  Bearing
  Grease Fitting
  Grease Fitting
  Grease Fitting
  Connecting Rod Pin
  Use 44(a) & 44(b)
  Magnet Hinge Pin
  Pin Collar
  Frame Bushing
  Shoe Lever Pin (Armature End)
  Assembled Armature, Complete
  Armature
  Bearing
  Assembled Grease Unit, Comp
  Header Block
  Grease Fitting
  Compression Fitting
  Tube
  Compression Fitting
  Air Gap Indicator
  Washer
  Manual Release Nut
  Lock Nut
  Spring Adjusting Nut
  Spring Collar
  Operating Spring, Large
  Operating Spring, Small
  Spring Collar
  Pin
  Assembled Spring Rod, Complete
  Spring Rod
  Bearing
  Grease Fitting
  Assembled Magnet, Complete
  Magnet Case
  Magnet Adjusting Screw
  Magnet Adjusting Nut
  Washer
  Lock Nut
  Lead Clamp Stud
  Lead Clamp
  Terminal Shield
  Lead Gasket
  Dust Shield
