EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT PARTS

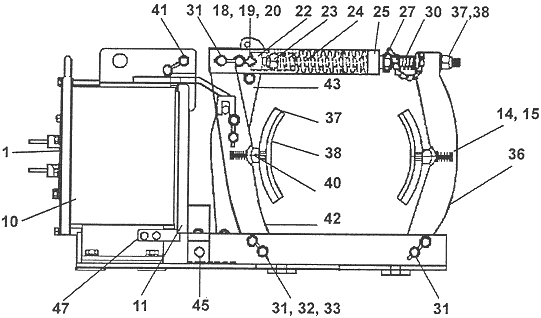

CLASS 5010 23" TYPE F SERIES A



  ITEM     OEM PART     DESCRIPTION
1
4
5
6
8
10
11
12
13
14
18
19
20
21
22
23
24
25
26
27
30
31
32
34
35
36
37
38
40
41
42
43
44
45
46
47
52
54
58
61
62
63
64
66
67
68
50908-143-50
50908-167-01
50908-166-01
29206-00761
21008-06120
50908-102-50
50908-121-50
29005-79645
50908-140-50
50901-010-16
50903-407-05
29907-04810
50901-010-18
24209-32780
50908-117-50
50903-405-04
50901-010-14
50908-137-51
50908-141-01
50908-136-50
50901-010-15
50903-401-13
50903-402-04
50908-101-50
50903-808-56
50908-127-50
50908-411-50
50908-109-01
50903-404-05
50903-401-16
50908-129-50
50908-119-50
50903-401-14
50908-115-50
50903-401-15
50908-139-01
50903-809-56
50903-814-56
50908-158-01
50903-415-04
50908-164-50
50908-160-01
29013-02120
50901-003-02
50908-154-50
50908-161-01
  Magnet Case Cover Assembly
  Terminal Shield
  Lead Bushing
  "O" Ring
  Drive Screw
  Base and Magnet Case Assembly
  Armature Assembly
  Bearing
  Center Bracket Assembly
  Shoe Mounting Spring
  Latch Pin
  "E" Ring
  Latch Pin Spring
  Pin
  Connector Rod Assembly
  Spring Seat
  Operating Spring
  Yoke Assembly
  Calibration Plate
  Manual Release Nut Assy
  Connecting Rod Spring
  Pin
  Locking Pin
  Shoe Assembly
  Shoe Lining Kit
  Outboard Shoe Lever Assembly
  Nut & Washer Assembly
  Adjusting Nut
  Lining Wear Indicator
  Pin
  Inboard Shoe Lever Assembly
  Connecting Rod Lever
  Pin
  Connecting Link Assembly
  Pin
  Armature Gap Indicator
  Assorted Hardware Package
  Self Adj. Shoe Mechanism Kit
  Connecting Rod
  Crank Pin
  Crank-Assembly
  Ratchet Rod
  Connecting Rod Bearing
  Spring
  Star Wheel Stop Nut Assy
  Ratchet Rod Guide
